Computer Vision

Computer vision allows computers to “see”, and to understand what they are seeing. This is done by reading and interpreting digital images and video.

Operations

What are some common computer vision operations?

  • Image filtering
    • Convert from one color space to another (e.g. RGB to grayscale).
    • Adjust brightness and contrast.
    • Blur or sharpen the image.
    • Edge detection.
Understanding Edge Detection (Sobel Operator)
Understanding Edge Detection (Sobel Operator)
  • Background subtraction
    • Detect moving objects by comparing them to a reference frame.
IHDC: Idiap Human Detection Code
IHDC: Idiap Human Detection Code
  • Object recognition
    • Blob detection
    • Contour finding
OpenCV Contours & Convex Hull 2 Structure plugin
OpenCV Contours & Convex Hull 2 Structure plugin
  • Motion estimation
    • Track pixel movement between consecutive frames and infer the direction objects are moving into.
Dense Realtime Optical Flow on the GPU
Dense Realtime Optical Flow on the GPU
  • Face detection
    • Feature recognition
    • Smile detection
Object Detection : Face Detection using Haar Cascade Classifiers
Object Detection : Face Detection using Haar Cascade Classifiers
  • Camera and projector calibration
Procamcalib
Procamcalib
Box by Bot & Dolly

Image Segmentation

One of the most common operations we will have to perform when working with computer vision is image segmentation. Image segmentation simply means dividing up the image pixels into meaningful groups. These meaningful groups depend on the application we are creating. For example, we may want to only consider the brightest pixels in an image, pixels of a certain color, clusters of pixels of a specific size, etc.

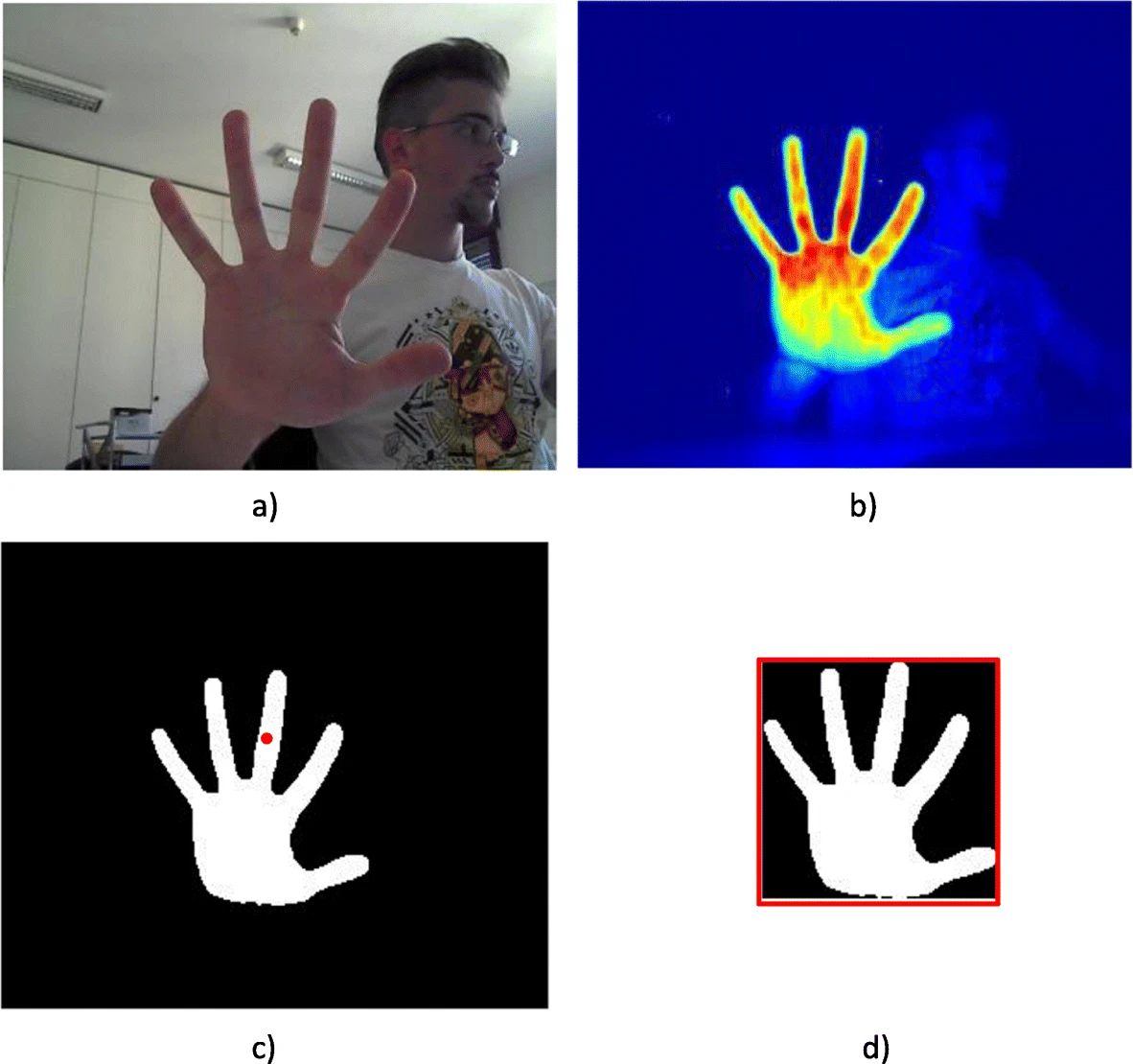

Shape-based hand recognition approach using the morphological pattern spectrum
Shape-based hand recognition approach using the morphological pattern spectrum

Image segmentation is the first step into many applications as it is a way to discard unwanted data and only keep what we need to focus on.

Video Capture

Let’s begin with a simple app to stream data from a connected webcam.

We will use an ofVideoGrabber to capture frames from video.

// ofApp.h
#pragma once

#include "ofMain.h"

class ofApp : public ofBaseApp
{
public:
  void setup();
  void update();
  void draw();

  ofVideoGrabber grabber;
};
// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
}

void ofApp::update()
{
  grabber.update();
}

void ofApp::draw()
{
  grabber.draw(0, 0, ofGetWidth(), ofGetHeight());
}

Note that we call the ofVideoGrabber::update() function every frame. This method checks if there’s a new video frame available and if so, refreshes the grabber to make it available.

We will use an ofImage to store our thresholded image. Let’s start with a stub procedure that just copies the video pixels into the image one at a time.

// ofApp.h
#pragma once

#include "ofMain.h"

class ofApp : public ofBaseApp
{
public:
  void setup();
  void update();
  void draw();

  ofVideoGrabber grabber;
  ofImage resultImg;
};
// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);
}

void ofApp::update()
{
  grabber.update();

  ofPixels grabberPix = grabber.getPixels();
  ofPixels resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      resultPix.setColor(x, y, pixColor);
    }
  }
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());
}

Pass by Reference vs. Pass by Value

You’ll notice that our drawn image is still not working even after adding the call to ofImage::update().

In C++, there are a few ways to pass data (aka arguments or parameters) between objects and functions. We can pass data by reference, by value, or by pointer.

  • Pass by reference means that we are passing the actual data object itself. Any changes we make to the received object will be kept in the original reference, as it is the same object.
  • Pass by value means that we are just passing the value of the data, not the data object itself. This means making a copy of the original object and passing that copy. This does not make a difference when the data is a number (like an int or a float) but it does matter when the data is an object, as any changes we make to the received object are only applied on this new copy object.
  • Pass by pointer means that we are passing the memory address of the data object. We will look at this later on in the course.

By default, data is passed by value in C++.

In our app, the line ofPixels resultPix = resultImg.getPixels(); creates a copy of the image pixels and stores it in resultPix. Any changes we make to resultPix are changes made on the copy and not on the ofPixels belonging to resultImg. This is why we are not seeing the image get updated.

One way to resolve this would be to save back the modified pixels to resultImg at the end of the loop:

resultImg.setFromPixels(resultPix);

Our code finally works! However it is highly unoptimized as we are now making two additional copies of our pixel array every frame.

// ofApp.cpp

// ...

void ofApp::update()
{
  grabber.update();

  ofPixels grabberPix = grabber.getPixels();
  ofPixels resultPix = resultImg.getPixels();  // COPY!
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      resultPix.setColor(x, y, pixColor);
    }
  }

  resultImg.setFromPixels(resultPix);  // COPY!
}

// ...

A better approach is to pass the original pixels by reference using the & operator. The reference ofPixels from the ofImage are then modified directly. We can even go ahead and pass the grabber pixels by reference and avoid making a copy there too.

// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);
}

void ofApp::update()
{
  grabber.update();

  // Use a reference to the ofPixels in both the grabber and the image.
  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg .getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      resultPix.setColor(x, y, pixColor);
    }
  }

  // Update the internal texture (GPU) with the new pixel data.
  resultImg.update();
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());
}
How would we set the result image to create a negative film effect?

A negative of a pixel of color is the inverse of that color. Because every pixel channel’s value has range 0-255, the inverse is the value substracted from 255.

negCol.r = 255 - pixCol.r;
negCol.g = 255 - pixCol.g;
negCol.b = 255 - pixCol.b;

ofColor has an ofColor::invert() method which does this for us.

// ofApp.cpp
#include "ofApp.h"

// ...

void ofApp::update()
{
  grabber.update();

  // Use a reference to the ofPixels in both the grabber and the image.
  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      resultPix.setColor(x, y, pixColor.invert());
    }
  }
  // Update the internal texture (GPU) with the new pixel data.
  resultImg.update();
}

// ...
How would we set the result image to create a gray tone effect?

We have a few options that could work. In all cases, we need to convert the image from the 3 RGB channels into a single channel value.

  • We could use the max value, called the brightness.
unsigned char gray = max(pixColor.r, max(pixColor.g, pixColor.b));
  • We could use the average value, called the lightness.
unsigned char gray = (pixColor.r + pixColor.g + pixColor.b) / 3;
  • We could calculate a weighted average, called the luminance. The following formula takes into account human eye perception, which is more sensitive to green.
unsigned char gray = 0.21 * pixColor.r + 0.71 * pixColor.g + 0.07 * pixColor.b;

ofColor has ofColor::getBrightness() and ofColor::getLightness() methods which can help.

// ofApp.cpp
#include "ofApp.h"

// ...

void ofApp::update()
{
  grabber.update();

  // Use a reference to the ofPixels in both the grabber and the image.
  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      resultPix.setColor(x, y, pixColor.getLightness());

      //unsigned char gray = 0.21 * pixColor.r + 0.71 * pixColor.g + 0.07 * pixColor.b;
      //resultPix.setColor(x, y, gray);
    }
  }
  // Update the internal texture (GPU) with the new pixel data.
  resultImg.update();
}

// ...

Thresholding

Thresholding is a simple segmentation technique where a pixel value is either on or off. If it is on we will color it white and if it is off we will color it black. Thresholded images can be used as masks into our input image, used to discard any pixels we want to ignore.

night lights from zach lieberman on Vimeo.

Let’s write a simple thresholding algorithm that only keeps the brightest parts of an image. We will use the brightness of each pixel color to determine if it should be on or off in our result image.

// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);
}

void ofApp::update()
{
  grabber.update();

  int brightnessThreshold = 128;

  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      if (pixColor.getBrightness() > brightnessThreshold)
      {
        // Set the pixel white if its value is above the threshold.
        resultPix.setColor(x, y, ofColor(255));
      }
      else
      {
        // Set the pixel black if its value is below the threshold.
        resultPix.setColor(x, y, ofColor(0));
      }
    }
  }
  resultImg.update();
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());
}

We should make our threshold value editable, as we do not know what environment this app will run in.

Let’s make brightnessThreshold a class variable by moving the declaration to the header file. We can then use the mouse position to adjust the value in every update loop. We will use the ofMap() function to easily convert our mouse position (from 0 to the width of the window) to our brightness range (from 0 to 255).

// ofApp.h
#pragma once

#include "ofMain.h"

class ofApp : public ofBaseApp
{
public:
  void setup();
  void update();
  void draw();

  ofVideoGrabber grabber;
  ofImage resultImg;

  int brightnessThreshold;
};
// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);
}

void ofApp::update()
{
  grabber.update();

  brightnessThreshold = ofMap(mouseX, 0, ofGetWidth(), 255, 0);

  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      if (pixColor.getBrightness() > brightnessThreshold)
      {
        // Set the pixel white if its value is above the threshold.
        resultPix.setColor(x, y, ofColor(255));
      }
      else
      {
        // Set the pixel black if its value is below the threshold.
        resultPix.setColor(x, y, ofColor(0));
      }
    }
  }
  resultImg.update();
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());
}

This is functional, but the way we are setting the threshold is a little clunky. We want better control and feedback for our threshold variable, and we can do this by replacing the mouse position by a GUI with a slider.

We will achieve this using two new elements: the ofxGui addon and the ofParameter template class.

ofxGui

The ofxGui addon ships with OF and is used for creating GUI elements.

“Addon” means it is not part of the OF core files. We need additional files in our project to use the addon. This can be complex if we do it manually, but thankfully we can select addons in the Project Generator and let it take care of the hard work.

Project Generator ofxGui

When we regenerate our project files, we will now have access to all the ofxGui classes.

For this example, we will use ofxPanel, which is simply a container that can hold other GUI controls like buttons and sliders.

ofxGui cannot use data types like int, float, string directly, because it needs additional information like a name, a range, etc.

One option is to use special classes that are part of ofxGui like ofxIntSlider, ofxColorSlider, ofxButton, etc. The example examples\gui\guiExample demonstrates how to do this.

ofParameter

Another option is to use a special OF class called ofParameter. This is more useful because ofParameter objects have similar properties and can be used outside of ofxGui.

ofParameter is a wrapper class that is used to give other data types super powers. For example:

  • Min and max values can be defined and the value will always stay within that range.
  • A notification gets triggered whenever the value is changed. This is especially useful for GUIs where we need to respond right away when a variable changes.

ofParameter uses the template syntax, meaning that whatever type they hold is set between the < > symbols. In our case, since the threshold is an int, our ofParameter will be defined using ofParameter<int>.

Our code now looks like the following, and our app window has a slider in the top-left corner we can use to edit the threshold value.

// ofApp.h
#pragma once

#include "ofMain.h"
#include "ofxGui.h"

class ofApp : public ofBaseApp
{
public:
  void setup();
  void update();
  void draw();

  ofVideoGrabber grabber;
  ofImage resultImg;

  ofParameter<int> brightnessThreshold;

  ofxPanel guiPanel;
};
// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);

  // Initialize the threshold parameter with range [0, 255].
  brightnessThreshold.set("Bri Thresh", 120, 0, 255);

  // Setup the GUI panel and add the threshold parameter.
  guiPanel.setup("Threshold");
  guiPanel.add(brightnessThreshold);
}

void ofApp::update()
{
  grabber.update();

  ofPixels& grabberPix = grabber.getPixels();
  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor pixColor = grabberPix.getColor(x, y);
      if (pixColor.getBrightness() > brightnessThreshold)
      {
        // Set the pixel white if its value is above the threshold.
        resultPix.setColor(x, y, ofColor(255));
      }
      else
      {
        // Set the pixel black if its value is below the threshold.
        resultPix.setColor(x, y, ofColor(0));
      }
    }
  }
  resultImg.update();
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());

  guiPanel.draw();
}

Background Subtraction

Background subtraction is a segmentation technique where the background pixels of an image are removed, leaving only the foreground data for processing.

Background subtraction requires that we have a background frame as a reference. We can do this by saving a video frame in memory, and comparing future frames to it in our update() loop.

Video pixel values change slightly over time, so we cannot expect them to be identical frame by frame. We will add a threshold value and compare the difference between the pixels to determine if it should be on or off.

// ofApp.h
#pragma once

#include "ofMain.h"
#include "ofxGui.h"

class ofApp : public ofBaseApp
{
public:
  void setup();
  void update();
  void draw();

  ofVideoGrabber grabber;
  ofImage backgroundImg;
  ofImage resultImg;

  ofParameter<bool> captureBackground;
  ofParameter<int> colorThreshold;

  ofxPanel guiPanel;
};
// ofApp.cpp
#include "ofApp.h"

void ofApp::setup()
{
  grabber.setup(1280, 720);
  resultImg.allocate(1280, 720, OF_IMAGE_COLOR);

  captureBackground.set("Capture BG", true);
  colorThreshold.set("Color Thresh", 120, 0, 255);

  guiPanel.setup("BG Subtraction");
  guiPanel.add(captureBackground);
  guiPanel.add(colorThreshold);
}

void ofApp::update()
{
  grabber.update();

  ofPixels& grabberPix = grabber.getPixels();

  if (captureBackground)
  {
    backgroundImg.setFromPixels(grabber.getPixels());
    captureBackground = false;
  }

  ofPixels& resultPix = resultImg.getPixels();
  for (int y = 0; y < grabberPix.getHeight(); y++)
  {
    for (int x = 0; x < grabberPix.getWidth(); x++)
    {
      ofColor grabColor = grabberPix.getColor(x, y);
      ofColor bgColor = backgroundImg.getColor(x, y);
      if (abs(grabColor.r - bgColor.r) > colorThreshold ||
          abs(grabColor.g - bgColor.g) > colorThreshold ||
          abs(grabColor.b - bgColor.b) > colorThreshold)
      {
        resultPix.setColor(x, y, grabColor);
      }
      else
      {
        resultPix.setColor(x, y, ofColor(0));
      }
    }
  }
  resultImg.update();
}

void ofApp::draw()
{
  resultImg.draw(0, 0, ofGetWidth(), ofGetHeight());

  guiPanel.draw();
}

Devices

Color

While using built-in webcams is convenient for testing, it is not a great choice for deployed projects. They tend to be low quality and not offer manual controls for white balance, exposure, focus, etc.

Infrared

Depending on the application and environment, it might be better to use an alternative to a color camera for capturing images.

Infrared cameras are often used for sensing because they see light that is invisible to humans. They tend to be a more versatile choice as they can be used in a bright room, a pitch dark room, facing a video projector, behind a touch surface, etc.

presence [a.k.a soft & silky] from smallfly on Vimeo.

Infrared USB cameras can be hard to come by.

  • One option is to get a depth sensor like an Intel RealSense. Most of these also include an IR light emitter, which means it will always have enough light to work properly.
  • Another popular option is to “hack” regular color cameras by adding a piece of processed film in front of the lens (which acts as an IR filter). There are a few tutorials on Instructables for doing this. A popular device for this hack is the PS3 Eye camera.
  • Finally, we can opt for security cameras. These tend to have emitters around the lens to ensure there is enough light for the sensor. However, the quality is not great and they usually do not have USB connectivity and will require an adapter.

Thermographic cameras, commonly known as FLIR, can be an interesting option. These infrared cameras sense radiation/heat and represent it as a color map. This can be very useful for tracking humans or animals as they can easily be segmented from their surroundings.

AGGRO DR1FT Teaser Trailer #1
